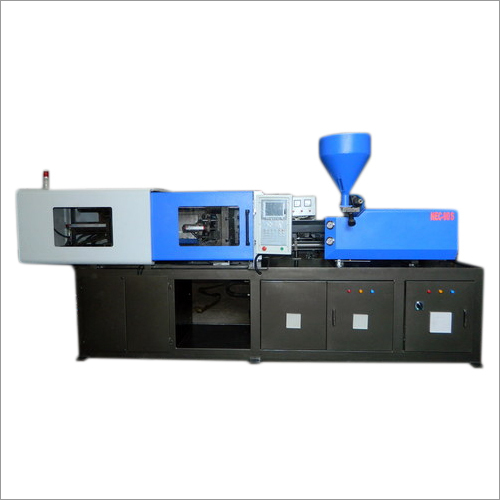

New Injection Moulding Machine

New Injection Moulding Machine
New Injection Moulding Machine
Product Code : NEC-270
Product Description

Naresh Engineering Corporation is an accredited manufacturer, supplier and exporter of New Injection Moulding Machine. Hi-tech spare parts and progressive technique are used in designing and developing this moulding machine under the keen observation of proficient professionals. Ideal for mold a variety of plastic items, this is rigorously inspected on varied aspects to enure its energy efficiency, high production capacity, hassle-free performance and longer functional life at operator's end. We are offering this New Injection Moulding Machine at marginal prices to clients.

Features:

  • User friendly design
  • Sturdy construction
  • Less upkeep requires
  • Longer operational life
Technical Specifications:

 MODELNEC-270

 A B C
INJECTION UNIT



Screw Diameter          mm
55
60
65
 Screw Ratio                l/d
24
22
20.3
 Shot Size                    cm3
676
805
945
 Injection Weight(ps)  gms
615
733
860
 Injection Pressure     mpa
202.3
170
144.9
 Screw Speed            r.p.m
220
 CLAMPING UNIT

 Clamp Tonnage          kn
2900
 Toggle Stroke            mm
590
 Tie Bar Diameter       mm
100
 Space Between Tie Bars                            mm
620*620
 Max.mold Height       mm
630
 Min.mold Height       mm
200
 Ejector Stroke           mm
150

 Ejector Tonnage         kn

70
 Ejector Number5
 OTHERS
 Max. pump Pressure   Mpa
16
 Pump Motor Power / Servo                             kw
22.5/28
 Heater Power               kw
19
 Machine Dimension (L*W*X)                         m
6.3*1.7*2.4
 Machine Weight           T
9.3
