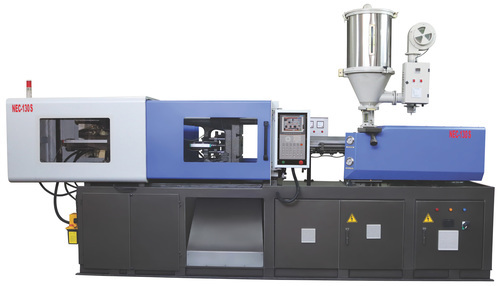

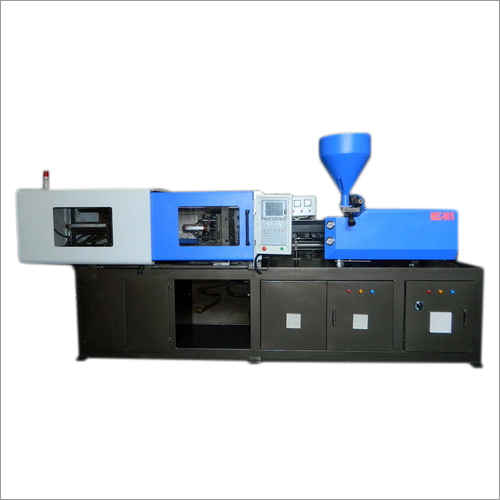

Fully Automatic Horizontal Injection Moulding Machine

Fully Automatic Horizontal Injection Moulding Machine Specification

Product Type
Injection Moulding Machine

General Use
Moulding

Material
Stainless Steel Alloy

Type
Plastic Injection Molding Machine

Style
Horizontal

Computerized
No

Automatic
Yes

Control System

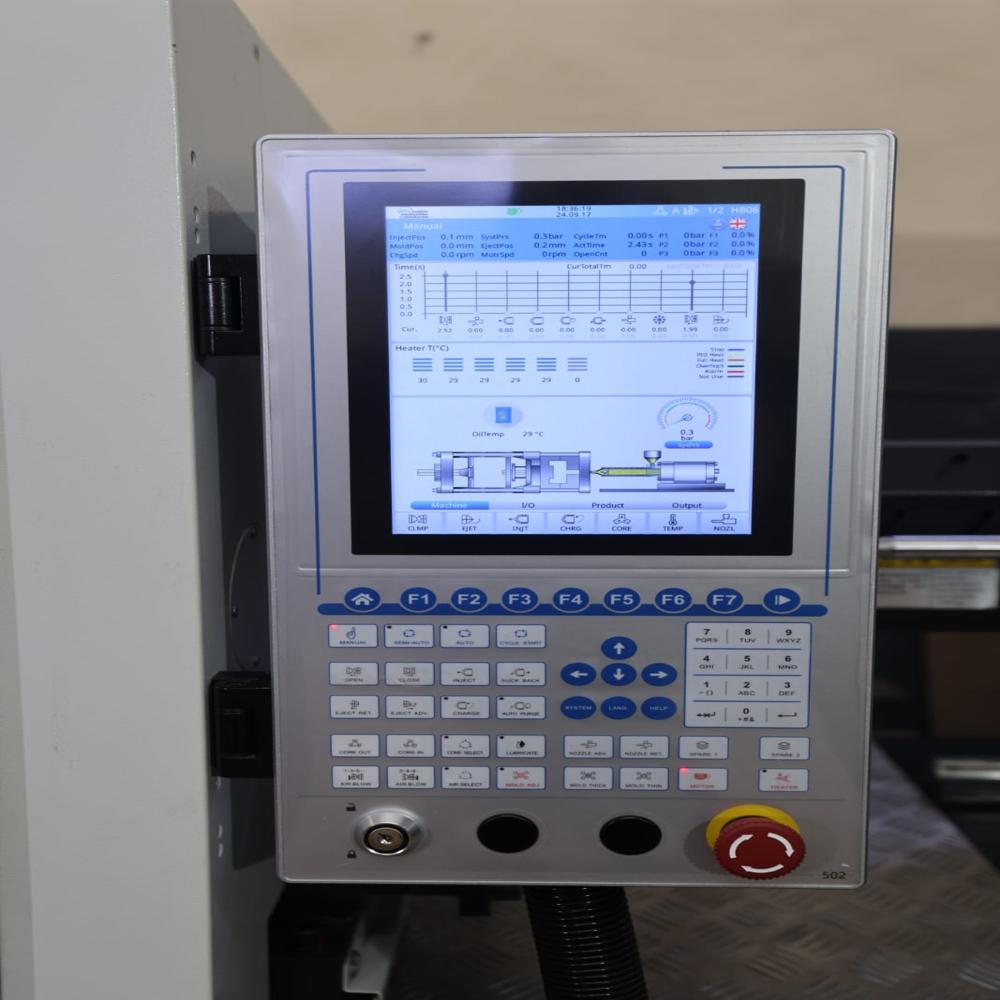

Human Machine Interface

Feature
High Efficiency, Smooth Running

Fully Automatic Horizontal Injection Moulding Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Day

Delivery Time
10 Days

Sample Available
No

Fully Automatic Horizontal Injection Moulding Machine About

With our rich industry experience, we are engaged in offering Horizontal Injection Moulding Machines. Offered machines are designed and manufactured by our experts using premium quality components as per the set quality standards. Our offered machines are highly valued for their attributes like rigid construction, reliability, an excellent performance and a long functional life. Extensively demanded in the industry, these Horizontal Injection Moulding Machines can be made available in various specifications in order to meet the different requirements of clients.

Features:

Precisely engineered
Strong structure
High efficiency
Require low maintenance

Specifications:

MODEL	NEC-160
	A	B	C
INJECTION UNIT
Screw Diameter mm	42	45	50
Screw Ratio l/d	23.6	22	19.8
Shot Size cm³	311	357	441
Injection Weight(ps) gms	283	325	402
Injection Pressure mpa	203	177	143
Screw Speed r.p.m	180
CLAMPING UNIT
Clamp Tonnage kn	1700
Toggle Stroke mm	435
Tie Bar Diameter mm	80
Space Between Tie Bars mm	470*470
Max.mold Height mm	520
Min.mold Height mm	180
Ejector Stroke mm	140
Ejector Tonnage kn	50
Ejector Number	5
OTHERS
Max. pump Pressure Mpa	16
Pump Motor Power / Servo kw	15/15
Heater Power kw	12.5
Machine Dimension (LWX) m	5.11.52.2
Machine Weight T	6
